Packaging and assembly processes for nanofabrication

Packaging and assembly for nanofabrication

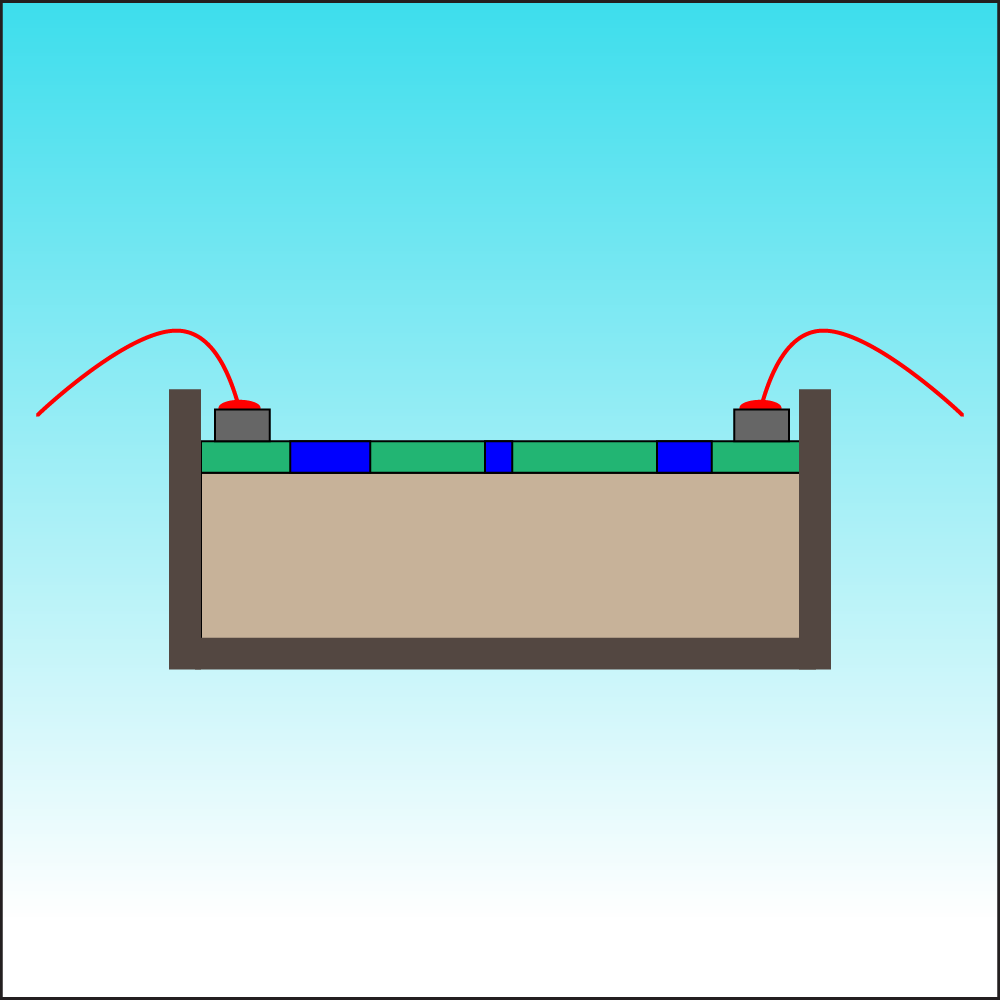

After microstructures have been fabricated on a substrate, additional steps must often be performed to allow those structures to interact with the macroscopic world. This can include cutting wafers with many copies of a pattern into individual dies; attaching macroscopic electrical leads; mounting the devices in protective packages, and so forth.

Electrical connection

Wire bonding

This is an accordion element with a series of buttons that open and close related content panels.

What it is used to do

Microscopic electronic structures need intermediate-scale electrical connections in order to interact with the human-scale world.

How it works

There are at least two primary types of wire bonding: ball bonding and wedge bonding. Both are available at the NFC.

Ball bonding usually is restricted to gold and copper wire and usually requires heat. For wedge bonding, only gold wire requires heat. Wedge bonding can use large diameter wires or wire ribbons for power electronics application. Ball bonding is limited to small diameter wires, suitable for interconnect application.

In either type of wire bonding, the wire is attached at both ends using a combination of downward pressure, ultrasonic energy, and in some cases heat, to make a weld. Heat is used to make the metal softer. The correct combination of temperature and ultrasonic energy is used in order to maximize the reliability and strength of a wire bond. If heat and ultrasonic energy is used, the process is called thermosonic bonding.

In wedge bonding, the wire must be drawn in a straight line according to the first bond. This slows down the process due to time needed for tool alignment. Ball bonding, however, creates its first bond in a ball shape with the wire sticking out at the top, having no directional preference. Thus, the wire can be drawn in any direction, making it a faster process.

Instrumentation Available

Strengths

Rapid, accurate wiring process that can be performed without bringing samples out of the cleanroom environment

Limitations

The metal surface on the substrate, to which the wire will be bonded, cannot be too thin

Applications

Additional Reading

Assembly

This is an accordion element with a series of buttons that open and close related content panels.

What it is used to do

Individually fabricated components may need to be aligned and bonded to each other to form a single more complex device.

How it works

Assembly processes can include a wide variety of attachment techniques, including anodic, eutectic, adhesive, and thermocompressive methods.

Instrumentation Available

Strengths

Limitations

Applications

Additional Reading

Separation

This is an accordion element with a series of buttons that open and close related content panels.

What it is used to do

Most nanofabrication techniques are intended to operate as parallel processes – that is, a large number of identical dies are fabricated at the the same time. Individual dies must be separated for use.

How it works

Instrumentation Available

Strengths

Limitations

Applications

Additional Reading
